·D型两轴可调式多轴器，用于大距离之钻也、攻牙作业且依选用的夹头、型式，可决定其两轴间距及钻孔能力。操作调整便利。
·It is a two spindle adjustable head.
·It is used on large distance requirement.
·It use chuck.
|
|
型式 Model
|
D-170
|
D-176
|
D-183
|
D-252
|
D-266
|
|
夹头规格Collet
|
JT1
JT2
|
JT
JT6
|
JT6
|
JT6
|
JT6
|
|
最大轴心范围 Max.Range of Centers
|
170
|
176
|
183
|
252
|
266
|
|
最小距离(二轴间)Lowest Distance
|
38
|
46
|
55
|
96
|
110
|
|
转速比 R.P.M
|
1:1.69
|
1:1.35
|
1:1
|
1:2.5
|
1:1.08
|
|
最大钻孔能力(mm)Max.Drilling Capacity
|
6.5
10
|
10
12
|
12
|
12
|
12
|
|
轴数Spindle
|
2
|
2
|
2
|
2
|
2
|
|
|
|
|
|
|
逆转
|
|
|
|
|
|

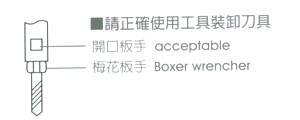

·拆装刀具时请用梅花板手切勿用开口板手替代
·Please use Boxer wrencher to open the flexible collet.
|

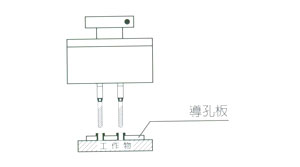

·为了保护钻轴寿命之长久及中心距离之准确度预钻之工作物须加用亲套并密著于工作物上
·Please use guide sleeve to protect the bit or tap and avoid the bit or tap slip during the work.
|
